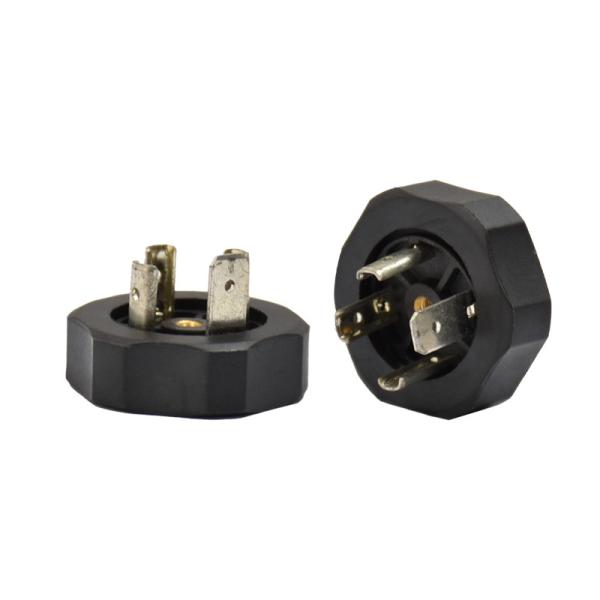

IP65 Din Valve Connector

Name: IP65 Din Valve Connector
Brand: RIGOAL
Price: 1 USD

China IP65 Din Valve Connector wholesale

Brand Name : RIGOAL

Model Number : Solenoid Valve Connector

Certification : CE , RoHS

Place of Origin : Guangdong, China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000 sets/day

Delivery Time : 10-15 work days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Contact Pin : 4 pin

Termination : Solder

Application : Industrial

Housing material : PA+GF

Ambient temperature : -40°C~+125°C

Conductor : Max 1.5 mm square

IP Rated : IP65

Housing color : Black

Type : Electrical Plug

Mechanical operation : >50 mating cysles

Contact Now

GSN 3P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201

DIN EN 175301-803 type B Base: 20.8 x 28.6

A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.

2P+E
Ambient temperature: -40°C to +90°C

The bases range is used extensively together with connectors to provide electrical connections in a wide range of applications. The most common application for mPm bases is in conjunction with hydraulic, pneumatic or electromagnetic devices. Other applications include, for example:

pressure transducers,

proximity switches,

level sensors,

limit switches,

thermostats and low energy motors.

Technical Data:

Contact Spacing	11mm
Rated Voltage	250VAC/300VDC
Operating Current	10A
Max. current	16A
Max. wire gauge	1,0 mm2
Termination	Solder
Housingmaterial	PA+30%GF
Temperature Range	–40 °C to +125 °C
With/without PE-screw	Available

IP65 Din Valve Connector
