PPS Insert Sp11 Circular Power Connector IP67 IP68 Waterproof Cable Connector

Name: PPS Insert Sp11 Circular Power Connector IP67 IP68 Waterproof Cable Connector
Brand: RIGOAL
Price: 1 USD

China PPS Insert Sp11 Circular Power Connector IP67 IP68 Waterproof Cable Connector wholesale

Brand Name : RIGOAL

Model Number : sp11 waterproof connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Number of contact : 2p，3p，4p，5P

Cable outer diameter : A (4.5-7MM) B (7-12MM)

Rated current(A) : 5A,3A

Contact diameter : 1.0*5

Termination : Solder

Rated voltage(AC.V) : 500V

Test voltage(AC.V)1MIN : 1500V

Couoing : Threaded coupling

Contact Now

Sp11 2pin 3pin 4pin 5pin Male Female Plug Socket IP67 IP68 Waterproof Cable Connector

Specification

item	value
Place of Origin	Shen zhen,China
Brand Name	RIGOAL
Model Number	sp13 weipu waterproof connector
Type	DIN
Application	Automotive
Gender	male
Pins	4p, 5P, 7P, 9P, 3P, 6P
Mate model	SYW1310
Number of contact	5P
Cable outer diameter	A (4.5-7MM) B (7-12MM)
Rated current(A)	5A
Contact diameter	1.0*5
Termination	Solder
Rated voltage(AC.V)	500V
Test voltage(AC.V)1MIN	1500V
Couoing	Threaded coupling
Shcoll material	Nylon66 fire resistance V0

Product Description

PPS Insert Sp11 Circular Power Connector IP67 IP68 Waterproof Cable Connector

Quality statement:

ews/nuts materials: brass with nickel plating, CNC parts
 * Male contacts materials: brass with gold plating, machined solid pin
 * Female contacts materials: phosphor bronze with gold plating, machined solid pin
 * Protection degrees: IP67/IP68 in locked status
 * RoHS Directive-compliant

 Our Services:
 * Fast Samples delivery service
 * Quote within 24 hours
 * Professional teams with RD & Sales for your projects
 * Special service for your urgent case
 * Customer is always our focus.

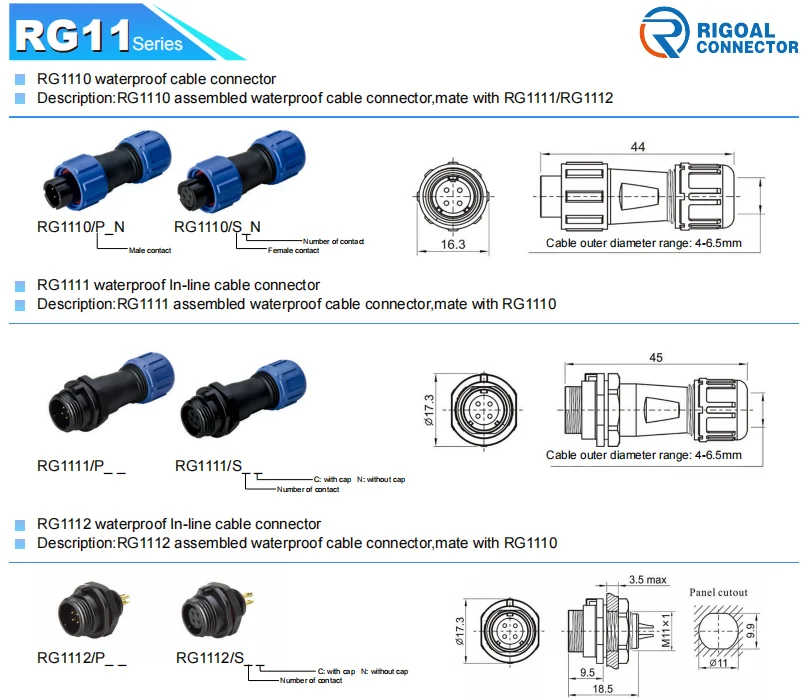

2-9 Pole Cable Mount Connectors ,rear panel mounting sockets, IP68 rating,Threaded mating

SP series of threaded IP68 connectors are perfect for your application.This particular model has a bigger and
 stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version
 should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to
 panel-mount connections. With its IP68 rating, each pro
