Solenoid Valve Connector A Type 3+PE Plug To M12 4pins Male Connector With Cable
General Details
Contacts: 3+PE/2+PE
Connector design: male connector
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6,0 - 8,0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250V
Rated impulse voltage: 4000V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA

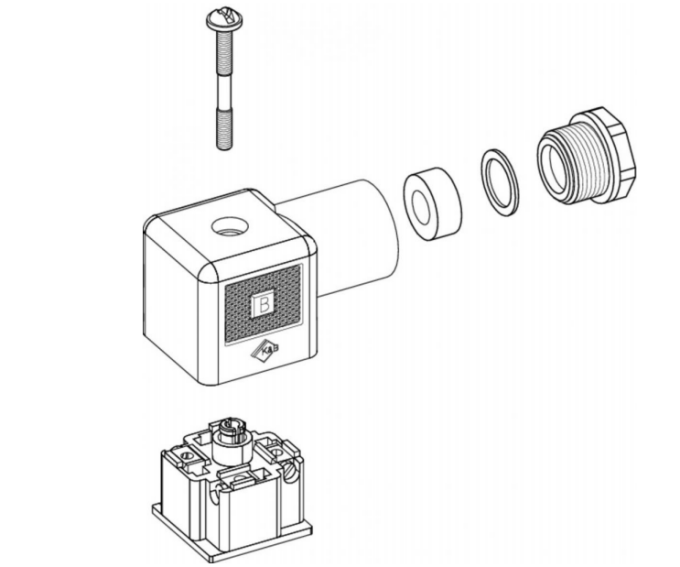

Component part drawing
| Connector type | m12 to selnoid valve connector |
| Contacts | 3+PE / 4PINS |
| Gender | male |
| Degree of protection | IP65 |
| Size of tail | PG7 or PG9 |
Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q4: How to contact us?
A: contact us with email/whatsapp/wechat
Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
